Oversized Environmental Showcase Engineering for The Yirrkala Church Panels

Gallery: Buku-Larrŋgay Mulka Art Centre

Location: Yirrkala, Northern Territory, Australia

Project: The Yirrkala Church Panels - Buku-Larrŋgay Mulka Art Centre

Oversized Environmental Showcase Engineering for The Yirrkala Church Panels

High-grade steel and architectural glass display enclosures engineered to protect sacred Yolngu art at Yirrkala

European Museum Technology engineered and fabricated two oversized protective showcases to safeguard the historic 1962–63 Yirrkala Church Panels at the Buku-Larrŋgay Mulka Art Centre against severe environmental conditions in the Northern Territory.

Background & Scope

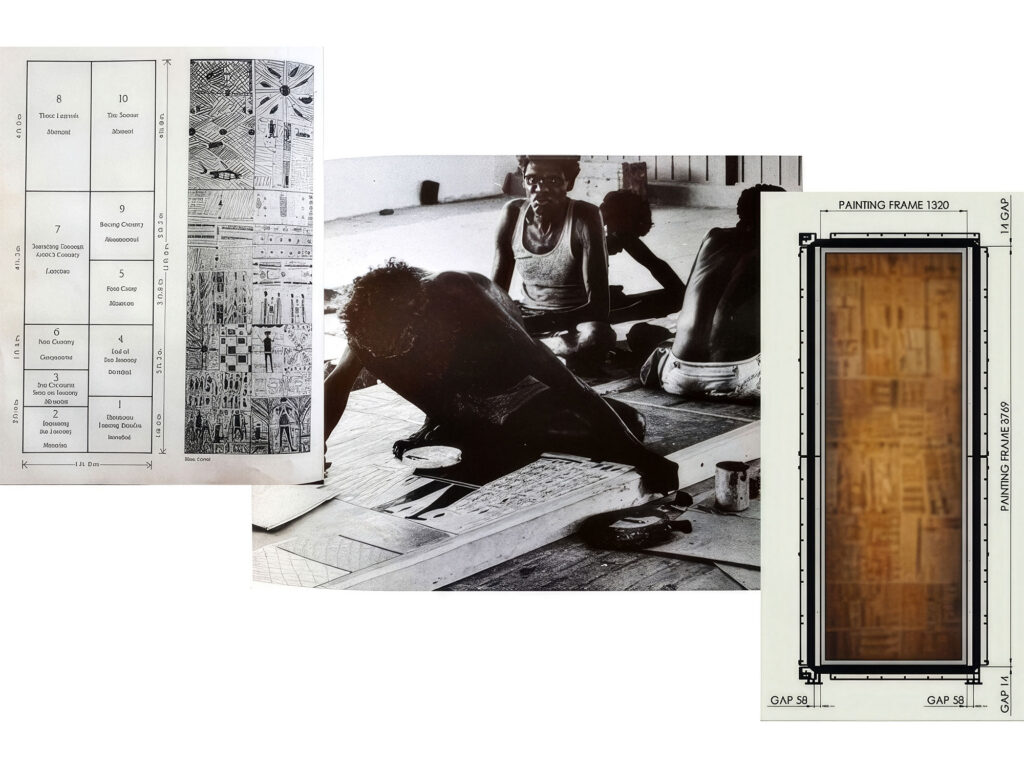

Painted in 1962–63, the Yirrkala Church Panels comprise two monumental works, each measuring twelve feet tall by four feet wide, executed in natural ochres on Masonite panels. Originally installed behind the communion table in the Methodist church at Yirrkala, the creation of these panels emerged in response to early threats to Yolngu sovereignty following the discovery of bauxite and proposed mining operations in the area.

Recognising the panels’ importance to First Nations cultural heritage, the Buku-Larrŋgay Mulka Art Centre commissioned two custom showcases to preserve the delicate ochre surfaces for future generations. The enclosures needed to protect the artworks’ structural and physical integrity from environmental threats such as hurricanes, tropical storms, and high humidity, while also ensuring an optimal visual experience for visitors.

Custom Fabrication & Material Specifications

European Museum Technology engineered and fabricated the two oversized display showcases at its Melbourne facilities. To resist structural distortion and withstand severe climatic events, EMT constructed the main frameworks from the highest grade steel, fitted with specialised architectural glass.

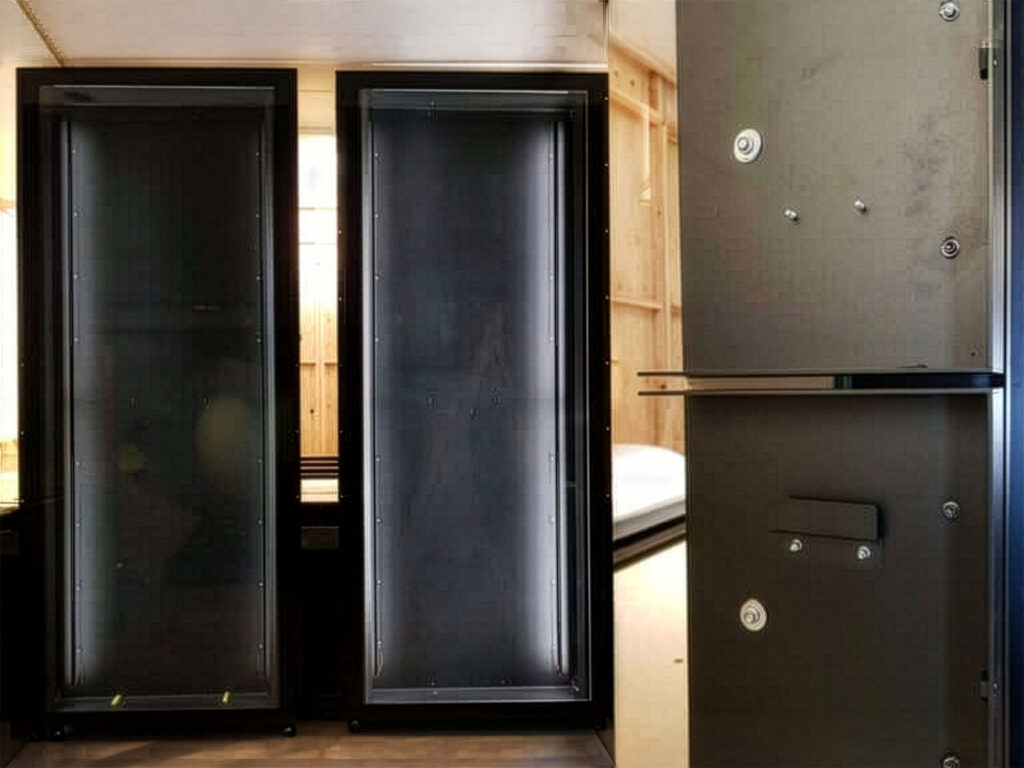

The design incorporates low-profile hinges within the frame assembly, eliminating visual clutter around the perimeter and maximising clear sightlines across the full four-by-twelve-foot expanse of each panel.

Environmental Testing & Remote Installation

Prior to deployment, EMT subjected both complete showcase units to rigorous structural testing within its Melbourne workshop to verify seal performance, load distribution, and environmental resilience.

Following successful testing and quality verification, EMT transported the units to the Northern Territory, where specialists executed the final on-site installation and positioning within the Buku-Larrŋgay Mulka Art Centre.
